Kennedy, Edward H. 2018. “Nonparametric Causal Effects Based on Incremental Propensity Score Interventions.”Journal of the American Statistical Association, no. just-accepted.
Definition of the intervention
Assume \(A\) is binary, and \(\P(A=1\mid W=w) = g(1\mid w)\) is the propensity score
Consider an intervention in which each individual receives the intervention with probability \(g_\delta(1\mid w)\), equal to \[\begin{equation*}
g_\delta(1\mid w)=\frac{\delta g(1\mid w)}{\delta g(1\mid w) +
1 - g(1\mid w)}
\end{equation*}\]
e.g., draw the post-intervention exposure from a Bernoulli variable with probability \(g_\delta(1\mid w)\)
The value \(\delta\) is user given
Let \(A_\delta\) denote the post-intervention exposure distribution
Some algebra shows that \(\delta\) is an odds ratio comparing the pre- and post-intervention exposure distributions \[\begin{equation*}
\delta = \frac{\text{odds}(A_\delta = 1\mid W=w)}
{\text{odds}(A = 1\mid W=w)}
\end{equation*}\]
Interpretation: what would happen in a world where the odds of receiving treatment is increased by \(\delta\)
Let \(Y_{A_\delta}\) denote the outcome in this hypothetical world
8.3.1.1 Illustrative application for IPSIs
Consider the effect of participation in sports on children’s BMI
Mediation through snacking, exercising, etc.
Intervention: for each individual, increase the odds of participating in sports by \(\delta=2\)
The post-intervention exposure is a draw \(A_\delta\) from a Bernoulli distribution with probability \(g_\delta(1\mid w)\)
Dı́az, Iván, and Nima S Hejazi. 2020. “Causal Mediation Analysis for Stochastic Interventions.”Journal of the Royal Statistical Society: Series B (Statistical Methodology) 82 (3): 661–83.
Definition of the intervention
Consider a continuous exposure \(A\) taking values in the real numbers
Consider an intervention that assigns exposure as \(A_\delta = A - \delta\)
Example: \(A\) is pollution measured as \(PM_{2.5}\) and you are interested in an intervention that reduces \(PM_{2.5}\) concentration by some amount \(\delta\)
8.3.2 Mediation analysis for stochastic interventions
The total effect of an IPSI can be computed as a contrast of the outcome under intervention vs no intervention: \[\begin{equation*}
\psi = \E[Y_{A_\delta} - Y]
\end{equation*}\]

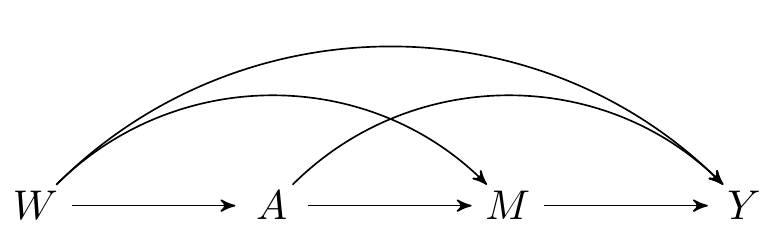

Recall the NPSEM \[\begin{align*}
W & = f_W(U_W)\\
A & = f_A(W, U_A)\\
M & = f_M(W, A, U_M)\\
Y & = f_Y(W, A, M, U_Y)
\end{align*}\]
From this we have \[\begin{align*}
M_{A_\delta} & = f_M(W, A_\delta, U_M)\\
Y_{A_\delta} & = f_Y(W, A_\delta, M_{A_\delta}, U_Y)
\end{align*}\]
Thus, we have \(Y_{A_\delta} = Y_{A_\delta, M_{A_\delta}}\) and \(Y =
Y_{A,M_{A}}\)
Let us introduce the counterfactual \(Y_{A_\delta, M}\), interpreted as the outcome observed in a world where the intervention on \(A\) is performed but the mediator is fixed at the value it would have taken under no intervention: [Y_{A_, M} = f_Y(W, A_, M, U_Y)]
Then we can decompose the total effect into: \[\begin{align*}
\E[Y&_{A_\delta,M_{A_\delta}} - Y_{A,M_A}] = \\
&\underbrace{\E[Y_{\color{red}{A_\delta},\color{blue}{M_{A_\delta}}} -
Y_{\color{red}{A_\delta},\color{blue}{M}}]}_{\text{stochastic natural
indirect effect}} +
\underbrace{\E[Y_{\color{blue}{A_\delta},\color{red}{M}} -
Y_{\color{blue}{A},\color{red}{M}}]}_{\text{stochastic natural direct
effect}}
\end{align*}\]
8.4 Identification assumptions
Confounder assumptions:
\(A \indep Y_{a,m} \mid W\)
\(M \indep Y_{a,m} \mid W, A\)
No confounder of \(M\rightarrow Y\) affected by \(A\)
Positivity assumptions:
If \(g_\delta(a \mid w)>0\) then \(g(a \mid w)>0\)
If \(\P(M=m\mid W=w)>0\) then \(\P(M=m\mid A=a,W=w)>0\)
Under these assumptions, stochastic effects are identified as follows
The indirect effect can be identified as follows \[\begin{align*}
\E&(Y_{A_\delta} - Y_{A_\delta, M}) =\\
&\E\left[\color{Goldenrod}{\sum_{a}\color{ForestGreen}{\{\E(Y\mid A=a, W)
-\E(Y\mid A=a, M, W)\}}g_\delta(a\mid W)}\right]
\end{align*}\]
The direct effect can be identified as follows \[\begin{align*}
\E&(Y_{A_\delta} - Y_{A_\delta, M}) =\\
&\E\left[\color{Goldenrod}{\sum_{a}\color{ForestGreen}{\{\E(Y\mid A=a, M, W)
- Y\}}g_\delta(a\mid W)}\right]
\end{align*}\]
Let’s dissect the formula for the indirect effect in R:
Code
n <-1e6w <-rnorm(n)a <-rbinom(n, 1, plogis(1+ w))m <-rnorm(n, w + a)y <-rnorm(n, w + a + m)
First, fit regressions of the outcome on \((A,W)\) and \((M,A,W)\):
Code
fit_y1 <-lm(y ~ m + a + w)fit_y2 <-lm(y ~ a + w)
Get predictions fixing \(A=a\) for all possible values \(a\)
Estimate the propensity score \(g(1\mid w)\) and evaluate the post-intervention propensity score \(g_\delta(1\mid w)\)
Code
pscore_fit <-glm(a ~ w, family =binomial())pscore <-predict(pscore_fit, type ="response")## How do the intervention vs observed propensity score comparepscore_delta <-2* pscore / (2* pscore +1- pscore)

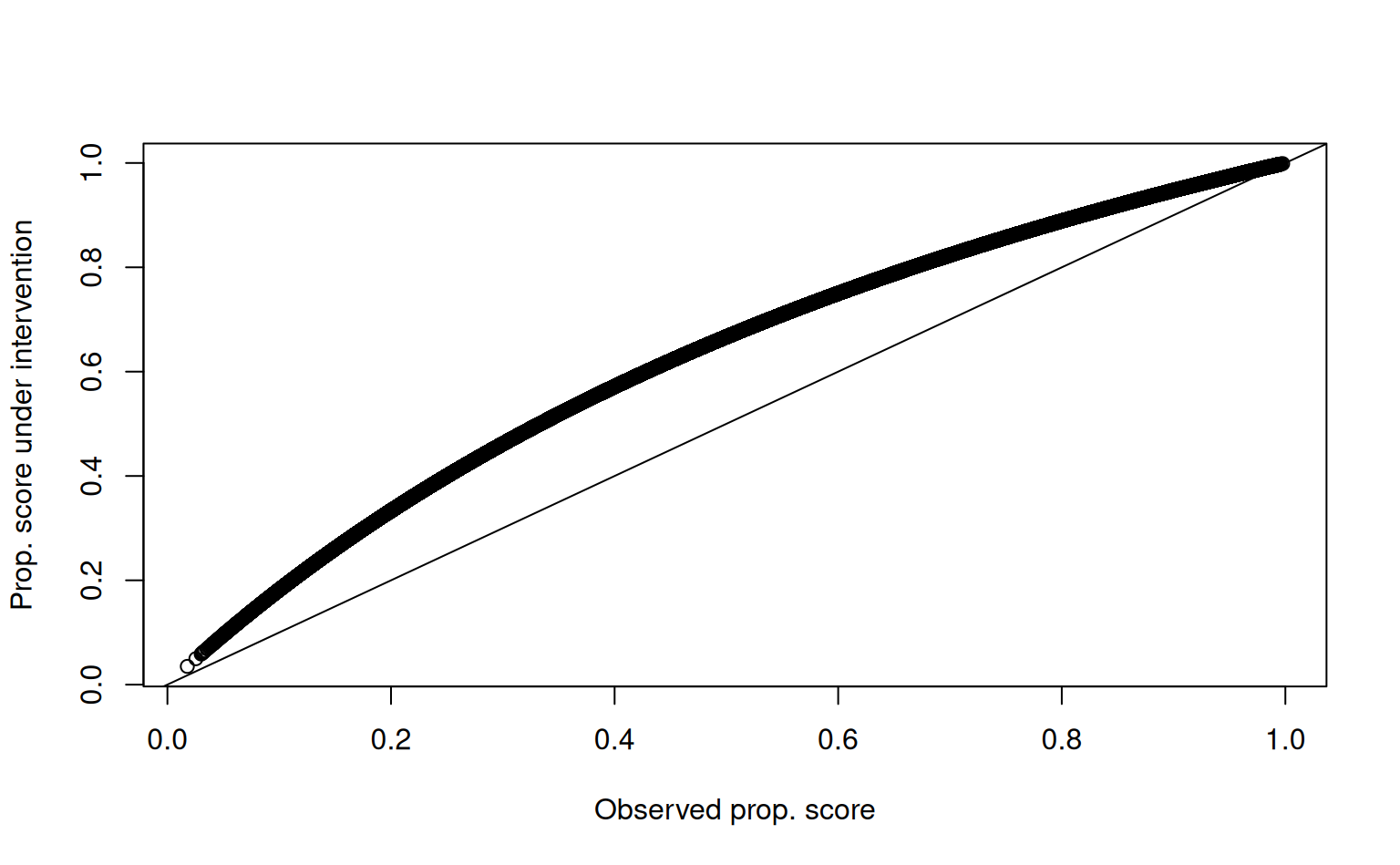

What do the post-intervention propensity scores look like?
Code
plot(pscore, pscore_delta,xlab ="Observed prop. score",ylab ="Prop. score under intervention")abline(0, 1)
8.5 What are the odds of exposure under intervention vs real world?
Compute the sum \[\begin{equation*}
\color{Goldenrod}{\sum_{a}\color{ForestGreen}{\{\E(Y\mid A=a, W) -
\E(Y\mid A=a, M, W)\}}g_\delta(a\mid W)}
\end{equation*}\]
The direct effect is \[\begin{align*}
\E&(Y_{A_\delta} - Y_{A_\delta, M}) =\\
&\E\left[\color{Goldenrod}{\sum_{a}\color{ForestGreen}{\{\E(Y\mid A=a, M,
W) - Y\}}g_\delta(a\mid W)}\right]
\end{align*}\]
Still require the absence of intermediate confounders
But, compared to the NDE and NIE, we can design a randomized study where identifiability assumptions hold, at least in principle
There is a version of these effects that can accommodate intermediate confounders (Hejazi et al. 2022)
R implementation to be released soon…stay tuned!
Hejazi, Nima S, Kara E Rudolph, Mark J van der Laan, and Iván Dı́az. 2022. “Nonparametric Causal Mediation Analysis for Stochastic Interventional (in) Direct Effects.”Biostatistics (in press). https://doi.org/10.1093/biostatistics/kxac002.
